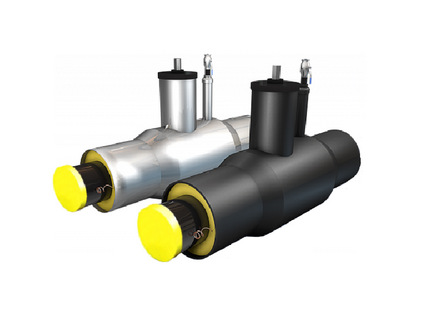

The ball air valve is used for cutting-off the flow of operating environment and for the relief of formed air plugs. The combination of the ball air valve and/or the ball water release valve is also possible.
|

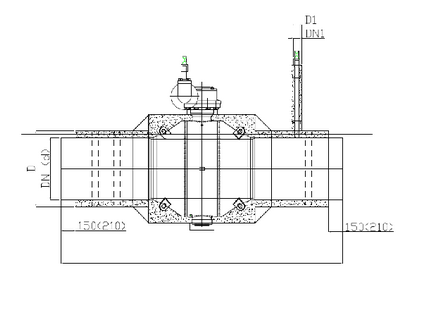

DN |
d, mm |
DN1 |
Type 1 PE mantle D1, mm for DN1 |
Type 2 PE mantle D1, mm for DN1 |
Type 1 PE mantle D, mm for DN |
Type 2 PE mantle D, mm for DN |
Gal mantle D, mm for DN |
L, mm |
|
25 |
32х3,0 |
25 |
125 |
125 |
125 |
- |
140 |
2000 |
|
32 |
38х3,0 |
25 |
125 |
125 |
125 |
- |
140 |
2000 |
|
40 |
45х3,0 |
32 |
125 |
125 |
125 |
- |
140 |
2000 |
|
50 |
57х3,0 |
32 |
125 |
125 |
125 |
140 |
140 |
2000 |
|
65 |
76х3,0 |
32 |
125 |
125 |
140 |
160 |
160 |
2000 |
|
80 |
89х4,0 |
32 |
125 |
125 |
160 |
180 |
180 |
2000 |
|
100 |
108х4,0 |
32 |
125 |
125 |
180 |
200 |
200 |
2000 |
|
125 |
133х4,0 |
32 |
125 |
125 |
225 |
250 |
225 |
2000 |
|
150 |
159х4,5 |
32 |
125 |
125 |
250 |
280 |
250 |
2000 |
|
200 |
219х6,0 |
32 |
125 |
125 |
315 |
355 |
315 |
2000 |
|
250 |
273х7,0 |
32 |
125 |
125 |
400 |
450 |
400 |
2000 |
|
300 |
325х7,0 |
32 |
125 |
125 |
450 |
500 |
450 |
2500 |
|
400 |
426х7,0 |
32 |
125 |
125 |
560 |
630 |
560 |
2500 |
|
500 |
530х7,0 |
50 |
125 |
140 |
710 |
- |
675 |
2500 |
|
600 |
630х8,0 |
50 |
125 |
140 |
800 |
- |
775 |
3000 |
|
700 |
720х8,0 |
50 |
125 |
140 |
900 |
- |
875 |
3000 |
|
800 |
820х9,0 |
50 |
125 |
140 |
1000 |
1100 |
975 |
3000 |
|
900 |
920х10,0 |
50 |
125 |
140 |
1100 |
1200 |
1075 |
3000 |
|
1000 |
1020х11,0 |
50 |
125 |
140 |
1200 |
- |
1175 |
3000 |
An example of the type codes in the ordered specification:
Ball air valve with outer diameter of stub pipes 630 mm, with thickness of pipe wall 8 mm, with isolation of type 1 from polyurethane foam, in polyethylene/galvanized casing, with height of rods 2,9 m.
- Ball air valve St630*8-1-PUF-PEM, H=2900 mm, L=2500 mm
- Ball air valve St630*8-PUF- GalM, H=2900 mm, L=2500 mm
Notes:
The lengths mentioned in the catalog are correspondent to the factory lengths of the products. For all the other necessary characteristics, see technical catalogs of ball valves producers.
