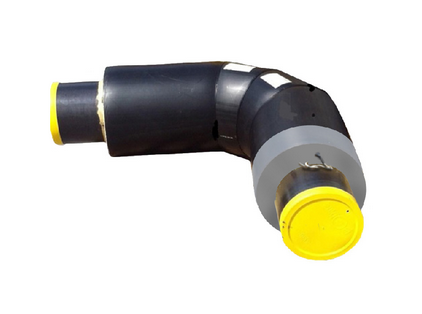

The bend with MHPI and butt outlet cable is a formed part designed for the gradual change of the direction of the pipe-line, and also for the tight joint of copper conductors of the whole pipe-line. Copper conductors are connected to each other in all the products into one continuous chain by means of terminal units of the system ORC with outlet cables which are fixed into the butt end of the metal head plug of isolation.
For the characteristics of the product see section “Bend with metal head plug of isolation MHPI”.
An example of the type codes in the ordered specification:
The steel elbow bend of diameter 89 mm, with thickness of pipe wall 4 mm, 90°, with isolation from polyurethane foam, in type 1, in polyethylene casing, with a metal head plug of isolation 200 mm in length and an outlet cable:
Elbow bend St89*4-90°-1-PUF-PEM-200K with MHPI and outlet cable
The steel elbow bend of diameter 89 mm, with thickness of pipe wall 4 mm, 90°, with isolation from polyurethane foam, , in galvanized casing, with a metal head plug of isolation 200 mm in length and an outlet cable:
Elbow bend St89*4-90°-PUF-GalM-200K with MHPI and outlet cable
Notes:

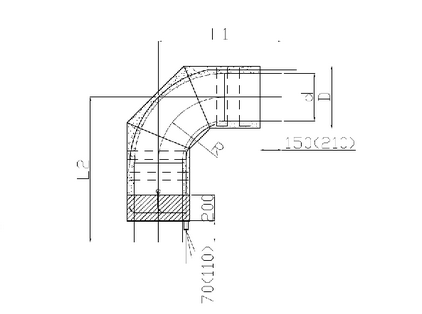

The size from the butt end of the elbow bend to the metal head plug of isolation for the steel pipe of 219 mm in diameter is 70 mm, for the elbow bends of other diameters it is 110 mm.
