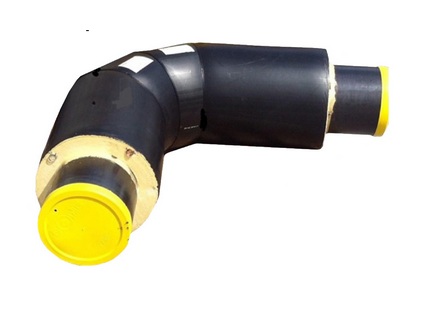

Bend with metal head plug of isolation (MHPI)

To protect PUF isolations and annular cables of SORC from external actions, a MHPI of 200 mm in length is installed at the place of the end of PUF isolation of the bend. At the request of the customer, a MHPI of 650 mm in length can be installed. Fastening the MHPI to the steel pipe is done with welding, the hermetization of the joint is done with a polyethylene casing – heat shrinkable tape.

d, mm	Angle of elbow bend
	PE mantle							Gal mantle
	Type 1			Type 2				D, mm	L1, mm	L2, mm
	D, mm	L1, mm	L2, mm	D, mm	L1, mm	L2, mm	m, kg	D, mm	L1, mm	L2, mm
3D (R=1,5DN)
32 х 3,0	125	1000	1200	-	1000	1200	13	140	1000	1200
38 х 3,0	125	1000	1200	-	1000	1200	14	140	1000	1200
45 х 3,0	125	1000	1200	-	1000	1200	14	140	1000	1200
57 х 3,0	125	1000	1200	140	1000	1200	17	140	1000	1200
76 х 3,0	140	1000	1200	160	1000	1200	23	160	1000	1200
89 х 4,0	160	1000	1200	180	1000	1200	29	180	1000	1200
108 х 4,0	180	1000	1200	200	1000	1200	38	200	1000	1200
133 х 4,0	225	1000	1200	250	1000	1200	49	225	1000	1200
159 х 4,5	250	1000	1200	280	1000	1200	66	250	1000	1200
219 х 6,0	315	1000	1200	355	1000	1200	113	315	1000	1200
273 х 7,0	400	1000	1200	450	1000	1200	153	400	1000	1200
325 х 7,0	450	1050	1250	560	1050	1250	190	450	1050	1250
426 х 7,0	560	1100	1300	630	1100	1300	288	560	1100	1300
530 х 7,0	710	1390	1590	-	1390	1590	405	675	1390	1590
630 х 8,0	800	1420	1620	-	1420	1620	439	775	1420	1620
720 х 8,0	900	1450	1650	-	1450	1650	606	875	1450	1650
820 х 9,0	1000	1700	1900	1100	1700	1900	846	975	1700	1900
920 х 10,0	1100	1800	2000	1200	1800	2000	956	1075	1800	2000
1020 х 11,0	1200	2000	2200	-	2000	2200	1020	1175	2000	2200
2D (R=DN)
530 х 7,0	710	1200	1400	-	1200	1400	405	675	1200	1400
630 х 8,0	800	1200	1400	-	1200	1400	439	775	1200	1400
720 х 8,0	900	1370	1570	-	1370	1570	606	875	1370	1570
820 х 9,0	1000	1470	1670	1100	1470	1670	846	975	1470	1670
920 х 10,0	1100	1570	1770	1200	1570	1770	956	1075	1570	1770
1020 х 11,0	1200	1620	1820	-	1620	1820	1020	1175	1620	1820

An example of the type codes in the ordered specification:

The steel elbow bend of diameter 57 mm, with thickness of pipe wall 3 mm, 90°, with isolation from polyurethane foam, in type 1, in polyethylene casing, with a metal head plug of isolation 200 mm in length:

Elbow bend St57*3-90°-1-PUF-PEM-200 with MHPI

The steel elbow bend of diameter 57 mm, with thickness of pipe wall 3 mm, 90°, with isolation from polyurethane foam, , in galvanized casing, with a metal head plug of isolation 200 mm in length:

Elbow bend St57*3-90°-PUF-GalM-200 with MHPI

Notes:

The size from the butt end of the elbow bend to the metal head plug of isolation for the steel pipe of 219 mm in diameter is 70 mm, for the elbow bends of other diameters it is 110 mm.
