Shortened three-way offset

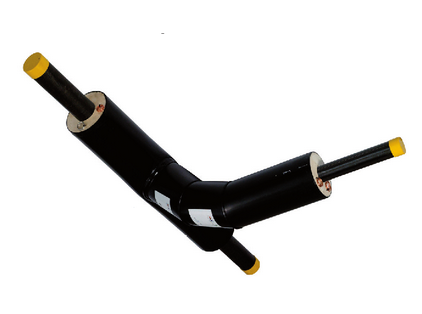

The shortened three-way offset is a a multicomponent assembly of the pipe-line system with three connector ends, which is designed for connecting side subsidiary pipes to the main pipe-line and flow distribution in pipe-lines. Herewith the operating environment changes its direction at the angle 90°. It is installed in places with limited space.

Size of main pipe					Size of offset					Height from axis of main pipe to axis of offset			Weight of item
d, mm	PE mantle		Gal mantle	Length, L, mm	d1, mm	PE mantle		Gal mantle	Length, l, mm	Type 1	Type 2	Gal mantle	m, kg
	Type 1	Type 2	Gal mantle			Type 1	Type 2	Gal mantle		Type 1	Type 2	Gal mantle
	D, mm	D, mm	D, mm			D1, mm	D1, mm	D, mm		H, mm	H, mm	H, mm
32	125	-	140	725	32	125	-	140	610	225	-	240	7
38	125	-	140	725	32	125	-	140	610	225	-	240	7
38	125	-	140	725	38	125	-	140	610	225	-	240	7
45	125	-	140	725	32	125	-	140	610	225	-	240	8
45	125	-	140	725	38	125	-	140	610	225	-	240	8
45	125	-	140	725	45	125	-	140	610	225	-	240	11
57	125	140	140	725	32	125	-	140	625	225	-	240	9
57	125	140	140	725	38	125	-	140	625	225	-	240	9
57	125	140	140	725	45	125	-	140	625	225	-	240	9
57	125	140	140	725	57	125	140	140	625	225	233	240	10
76	140	160	160	725	32	125	-	140	635	233	-	250	17
76	140	160	160	725	38	125	-	140	635	233	-	250	17
76	140	160	160	725	45	125	-	140	635	233	-	250	17
76	140	160	160	725	57	125	140	140	635	233	240	250	17
76	140	160	160	725	76	140	160	160	655	240	250	260	19
89	160	180	180	725	32	125	-	140	645	243	-	260	16
89	160	180	180	725	38	125	-	140	645	243	-	260	16
89	160	180	180	725	45	125	-	140	645	243	-	260	16
89	160	180	180	725	57	125	140	140	645	243	250	260	16
89	160	180	180	725	76	140	160	160	665	250	260	270	18
89	160	180	180	725	89	160	180	180	680	260	270	280	20
108	180	200	200	725	32	125	-	140	655	253	-	270	23
108	180	200	200	725	38	125	-	140	655	253	-	270	23
108	180	200	200	725	45	125	-	140	655	253	-	270	23
108	180	200	200	725	57	125	140	140	655	253	260	270	23
108	180	200	200	740	76	140	160	160	675	260	270	280	25

Size of main pipe					Size of offset					Height from axis of main pipe to axis of offset			Weight of item
d, mm	PE mantle		Gal mantle	Length, L, mm	d1, mm	PE mantle		Gal mantle	Length, l, mm	Type 1	Type 2	Gal mantle	m, kg
	Type 1	Type 2	Gal mantle			Type 1	Type 2	Gal mantle		Type 1	Type 2	Gal mantle
	D, mm	D, mm	D, mm			D1, mm	D1, mm	D, mm		H, mm	H, mm	H, mm
108	180	200	200	760	89	160	180	180	690	270	280	290	26
108	180	200	200	780	108	180	200	200	715	280	290	300	29
133	225	250	225	725	32	125	-	140	680	275	-	283	17
133	225	250	225	725	38	125	-	140	680	275	-	283	19
133	225	250	225	725	45	125	-	140	680	275	-	283	20
133	225	250	225	725	57	125	140	140	680	275	283	283	20
133	225	250	225	740	76	140	160	160	700	283	293	293	24
133	225	250	225	760	89	160	180	180	715	293	303	303	26
133	225	250	225	780	108	180	200	200	740	303	313	313	28
133	225	250	225	825	133	225	250	225	830	325	338	325	36
159	250	280	250	725	32	125	-	140	695	288	-	295	23
159	250	280	250	725	38	125	-	140	695	288	-	295	23
159	250	280	250	725	45	125	-	140	695	288	-	295	24
159	250	280	250	725	57	125	140	140	695	288	295	295	24
159	250	280	250	740	76	140	140	160	715	295	305	305	27
159	250	280	250	760	89	160	180	180	730	305	315	315	29
159	250	280	250	780	108	180	200	200	755	315	325	325	32
159	250	280	250	825	133	225	250	225	845	338	350	338	39
159	250	280	250	850	159	250	280	250	875	350	365	350	45
219	315	355	315	725	32	125	-	140	730	320	-	328	37
219	315	355	315	725	38	125	-	140	730	320	-	328	37
219	315	355	315	725	45	125	-	140	730	320	-	328	38
219	315	355	315	725	57	125	140	140	730	320	328	328	39
219	315	355	315	740	76	140	160	160	750	328	338	338	41
219	315	355	315	760	89	160	180	180	770	338	348	348	44
219	315	355	315	780	108	180	200	200	790	348	358	358	47
219	315	355	315	825	133	225	250	225	885	370	383	370	55
219	315	355	315	850	159	250	280	250	915	383	398	383	61
219	315	355	315	925	219	315	355	315	980	415	435	415	84
273	400	450	400	845	38	125	-	140	780	363	-	370	52
273	400	450	400	845	45	-	-	140	780	363	-	370	53
273	400	450	400	845	57	125	140	140	780	363	370	370	54
273	400	450	400	860	76	140	160	160	800	370	380	380	56
273	400	450	400	880	89	160	180	180	815	380	390	390	60
273	400	450	400	900	108	180	200	200	840	390	400	400	63
273	400	450	400	945	133	225	250	225	930	413	425	413	72
273	400	450	400	970	159	250	280	250	960	425	440	425	79
273	400	450	400	1045	219	315	355	315	1030	458	478	458	105
273	400	450	400	1120	273	400	450	400	1110	500	525	500	127
325	450	500	450	845	45	125	-	140	805	388	395	395	68
325	450	500	450	845	57	125	140	140	805	388	395	395	69
325	450	500	450	860	76	140	160	160	825	395	405	405	73
325	450	500	450	880	89	160	180	180	840	405	415	415	76
325	450	500	450	900	108	180	200	200	865	415	425	425	79

Size of main pipe					Size of offset					Height from axis of main pipe to axis of offset			Weight of item
d, mm	PE mantle		Gal mantle	Length, L, mm	d1, mm	PE mantle		Gal mantle	Length, l, mm	Type 1	Type 2	Gal mantle	m, kg
	Type 1	Type 2	Gal mantle			Type 1	Type 2	Gal mantle		Type 1	Type 2	Gal mantle
	D, mm	D, mm	D, mm			D1, mm	D1, mm	D, mm		H, mm	H, mm	H, mm
325	450	500	450	945	133	225	250	225	955	438	450	438	89
325	450	500	450	970	159	250	280	250	985	450	465	450	95
325	450	500	450	1045	219	315	355	315	1055	483	503	483	121
325	450	500	450	1120	273	400	450	400	1130	525	550	525	159
325	450	500	450	1170	325	450	500	450	1340	550	575	550	195
426	560	630	560	845	57	125	140	140	870	443	450	450	92
426	560	630	560	860	76	140	160	160	890	450	460	460	96
426	560	630	560	880	89	160	180	180	905	460	470	470	100
426	560	630	560	900	108	180	200	200	930	470	480	480	104
426	560	630	560	945	133	225	250	225	1020	493	505	493	114
426	560	630	560	970	159	250	280	250	1050	505	520	505	123
426	560	630	560	1045	219	315	355	315	1120	538	558	538	152
426	560	630	560	1120	273	400	450	400	1195	580	605	580	193
426	560	630	560	1170	325	450	500	450	1405	605	630	605	236
426	560	630	560	1280	426	560	630	560	1530	660	695	660	293
530	710	-	675	860	76	140	160	160	930	525	535	518	116
530	710	-	675	880	89	160	180	180	945	535	545	528	122
530	710	-	675	900	108	180	200	200	970	545	555	538	126
530	710	-	675	945	133	225	250	225	1060	568	580	550	137
530	710	-	675	970	159	250	280	250	1090	580	595	563	146
530	710	-	675	1045	219	315	355	315	1160	613	633	595	178
530	710	-	675	1120	273	400	450	400	1235	655	680	638	224
530	710	-	675	1170	325	450	500	450	1345	680	705	663	259
530	710	-	675	1280	426	560	630	560	1570	735	770	718	331
530	710	-	675	1430	530	710	-	675	1670	810	-	775	402
630	800	-	775	880	89	160	180	180	990	580	590	578	142
630	800	-	775	900	108	180	200	200	1015	590	600	588	147
630	800	-	775	945	133	225	250	225	1105	613	625	600	159
630	800	-	775	970	159	250	280	250	1135	625	640	613	168
630	800	-	775	1045	219	315	355	315	1205	658	678	645	203
630	800	-	775	1120	273	400	450	400	1280	700	725	688	253
630	800	-	775	1170	325	450	500	450	1390	725	750	713	291
630	800	-	775	1280	426	560	630	560	1615	780	815	768	353
630	800	-	775	1430	530	710	-	675	1715	855	-	825	493
630	800	-	775	1520	630	800	-	775	2025	900	-	875	496
720	900	-	875	900	108	180	200	200	1065	640	650	638	169
720	900	-	875	945	133	225	250	225	1155	663	675	650	182
720	900	-	875	970	159	250	280	250	1185	675	690	663	193
720	900	-	875	1045	219	315	355	315	1255	708	728	695	231
720	900	-	875	1120	273	400	450	400	1330	750	775	738	287
720	900	-	875	1170	325	450	500	450	1440	775	800	763	325
720	900	-	875	1280	426	560	630	560	1665	830	865	818	406
720	900	-	875	1430	530	710	-	675	1765	905	-	875	505
720	900	-	875	1520	630	800	-	775	2075	950	-	925	548

Size of main pipe					Size of offset					Height from axis of main pipe to axis of offset			Weight of item
d, mm	PE mantle		Gal mantle	Length, L, mm	d1, mm	PE mantle		Gal mantle	Length, l, mm	Type 1	Type 2	Gal mantle	m, kg
	Type 1	Type 2	Gal mantle			Type 1	Type 2	Gal mantle		Type 1	Type 2	Gal mantle
	D, mm	D, mm	D, mm			D1, mm	D1, mm	D, mm		H, mm	H, mm	H, mm
720	900	-	875	1620	720	800	-	875	2415	1000	-	975	655
820	1000	1100	975	945	133	225	250	225	1285	713	725	700	238
820	1000	1100	975	970	159	250	280	250	1210	725	740	713	248
820	1000	1100	975	1045	219	315	355	315	1375	758	778	745	292
820	1000	1100	975	1120	273	400	450	400	1450	800	825	788	355
820	1000	1100	975	1170	325	450	500	450	1575	825	850	813	400
820	1000	1100	975	1280	426	560	630	560	1770	880	915	868	491
820	1000	1100	975	1430	530	710	-	675	1905	955	-	925	592
820	1000	1100	975	1520	630	800	-	775	2555	1000	-	975	632
820	1000	1100	975	1620	720	900	-	875	2585	1050	-	1025	724
820	1000	1100	975	1720	820	1000	1100	975	2605	1100	1150	1075	943
920	1100	1200	1075	970	159	250	280	250	1340	775	790	763	278
920	1100	1200	1075	1045	219	315	355	315	1515	808	828	795	322
920	1100	1200	1075	1120	273	400	450	400	1600	850	875	838	394
920	1100	1200	1075	1170	325	450	500	450	1735	875	900	863	443
920	1100	1200	1075	1280	426	560	630	560	1910	930	965	918	553
920	1100	1200	1075	1430	530	710	-	675	2125	1005	-	975	645
920	1100	1200	1075	1520	630	800	-	775	2375	1050	-	1025	675
920	1100	1200	1075	1620	720	900	-	875	2715	1100	-	1075	766
920	1100	1200	1075	1720	820	1000	1100	975	2750	1150	1200	1125	1005
920	1100	1200	1075	1820	920	1100	1200	1075	2785	1200	1250	1175	1064
1020	1200	-	1175	1045	219	315	355	315	1625	858	878	845	364
1020	1200	-	1175	1120	273	400	450	400	1710	900	925	888	442
1020	1200	-	1175	1170	325	450	500	450	1855	925	950	913	499
1020	1200	-	1175	1280	426	560	630	560	2030	980	1015	968	588
1020	1200	-	1175	1430	530	710	-	675	2245	1055	-	1025	701
1020	1200	-	1175	1520	630	800	-	775	2505	1100	-	1075	728
1020	1200	-	1175	1620	720	900	-	875	2850	1150	-	1125	637
1020	1200	-	1175	1720	820	1000	1100	975	2885	1200	1250	1175	1016
1020	1200	-	1175	1820	920	1100	1200	1075	2935	1250	1300	1225	1134
1020	1200	-	1175	1920	1020	1200	-	1175	2975	1300	-	1275	1222

An example of the type codes in the ordered specification:

Shortened three-way offset with outer diameter of the main pipe 108 mm, with thickness of pipe wall 4 mm and a subsidiary pipe of 76 mm in diameter, with thickness of pipe wall 3 mm, , with isolation of type 1 from polyurethane foam, in polyethylene casing:

Three-way offset shortened St108*4-76*3-1-PUF-PEM-Sh

Shortened three-way offset with outer diameter of the main pipe 108 mm, with thickness of pipe wall 4 mm and a subsidiary pipe of 76 mm in diameter, with thickness of pipe wall 3 mm, with isolation from polyurethane foam, in galvanized casing:

Three-way offset shortened St108*4-76*3-PUF-GalM-Sh
