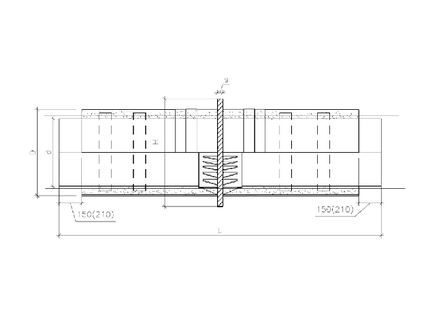

The fixed dielectric supports are used as usual fixed supports, the difference between them is that the formers have insulate plates which protect the support from the corrosive effect of ground currents.
For the characteristics of the product, see section «Fixed support».
An example of the type codes in the ordered specification:
The fixed dielectric support for the pipe with diameter 426 mm, with thickness of pipe wall 7 mm, with board dimensions of 750 mm in height and 40 mm in thickness, with isolation of type 1 from polyurethane foam, in polyethylene (galvanized) casing:
- Fixed dielectric support St426*7-750*40-1-PUF-PEM-D
- Fixed dielectric support St426*7-750*40-PUF- GalM-D
Notes:
*Maximum load on the element of support.
