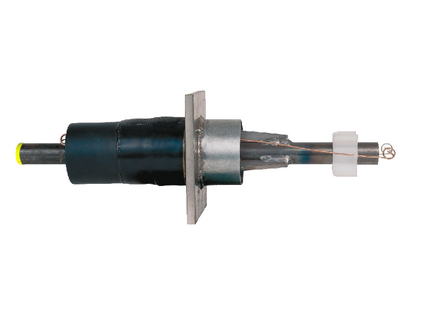

Fixed supports are used for both pipe-line systems of above-ground routing and underground duct-free laying. The supports are designed for sensing and leveling of loading which appears in the pipe-line as the result of temperature variations.
|
d, mm |
PE mantle
|
Gal mantle
|
H, mm |
S, mm |
L PEM, mm |
L GalM, mm |
P*max tn |
||
|
Type 1
|
Type 2
|
||||||||
|
D, mm
|
D, mm
|
m, kg
|
D, mm
|
||||||
|
32 |
125 |
- |
33 |
140 |
255 |
16 |
2500 |
2000 |
3,6 |
|
38 |
125 |
- |
34 |
140 |
255 |
16 |
2500 |
2000 |
4,2 |
|
45 |
125 |
- |
35 |
140 |
255 |
16 |
2500 |
2000 |
5,0 |
|
57 |
125 |
140 |
37 |
140 |
255 |
16 |
2500 |
2000 |
7,5 |
|
76 |
140 |
160 |
41 |
160 |
275 |
16 |
2500 |
2000 |
9,5 |
|
89 |
160 |
180 |
53 |
180 |
295 |
16 |
2500 |
2000 |
12,5 |
|
108 |
180 |
200 |
64 |
200 |
315 |
16 |
2500 |
2000 |
20,5 |
|
133 |
225 |
250 |
92 |
225 |
340 |
16 |
2500 |
2000 |
26,5 |
|
159 |
250 |
280 |
126 |
250 |
400 |
20 |
2500 |
2000 |
36,0 |
|
219 |
315 |
355 |
190 |
315 |
460 |
24 |
2500 |
2000 |
50,0 |
|
273 |
400 |
450 |
328 |
400 |
550 |
30 |
3000 |
2000 |
75,0 |
|
325 |
450 |
500 |
424 |
450 |
650 |
40 |
3000 |
2000 |
90,0 |
|
426 |
560 |
630 |
569 |
560 |
750 |
40 |
3000 |
2000 |
120,0 |
|
530 |
710 |
- |
778 |
675 |
900 |
40 |
3000 |
2000 |
150,0 |
|
630 |
800 |
- |
940 |
775 |
1000 |
50 |
3000 |
2000 |
205,0 |
|
720 |
900 |
- |
1182 |
875 |
1100 |
50 |
3500 |
2000 |
235,0 |
|
820 |
1000 |
1100 |
1625 |
975 |
1300 |
50 |
3500 |
2000 |
310,0 |
|
920 |
1100 |
1200 |
1810 |
1075 |
1300 |
60 |
3500 |
2000 |
430,0 |
|
1020 |
1200 |
- |
1988 |
1175 |
1400 |
60 |
3500 |
2000 |
470,0 |
An example of the type codes in the ordered specification:
The fixed support for the pipe with diameter 325 mm, with thickness of pipe wall 7 mm, with board dimensions of 650 mm in height and 40 mm in thickness, with isolation of type 1 from polyurethane foam, in polyethylene (galvanized) casing:
Fixed support St325*7-650*40-1-PUF-PEM
Fixed support St325*7-650*40-PUF- GalM
Notes:
*Maximum load on the element of support.
