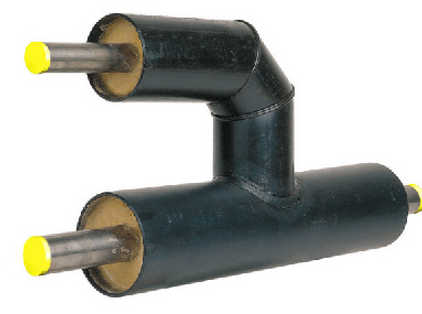

Paralleled T-socket

A paralleled T-socket in PUF isolation is used for creating a parallel subdivision of the pipe-line.

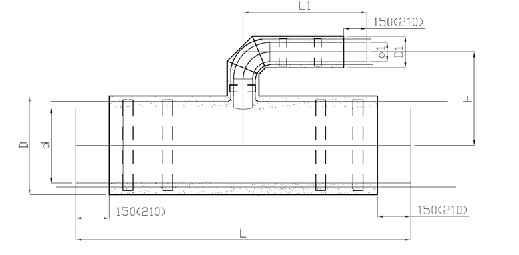

d, mm	d1, mm	PE mantle					Gal mantle		Center-to-center distance between pipes	Length of main pipe	Length of subsidiary pipe
		Type 1		Type 2			Gal mantle		Center-to-center distance between pipes	Length of main pipe	Length of subsidiary pipe
		D, mm	D1, mm	D, mm	D1, mm	m, kg	D, mm	D1, mm	H, mm	L, mm	L1, mm
32	32	125	125	-	-	10	140	140	275	1200	700
38	32	125	125	-	-	10	140	140	275	1200	700
38	38	125	125	-	-	11	140	140	275	1200	700
45	32	125	125	-	-	11	140	140	275	1200	700
45	38	125	125	-	-	11	140	140	275	1200	700
45	45	125	125	-	-	12	140	140	275	1200	700
57	32	125	125	140	-	12	140	140	283	1200	700
57	38	125	125	140	-	12	140	140	283	1200	700
57	45	125	125	140	-	14	140	140	283	1200	700
57	57	125	125	140	140	15	140	140	290	1300	700
76	32	140	125	160	-	16	160	140	293	1300	700
76	38	140	125	160	-	16	160	140	293	1300	700
76	45	140	125	160	-	17	160	140	293	1300	700
76	57	140	125	160	140	18	160	140	300	1300	700
76	76	140	140	160	160	21	160	160	310	1300	700
89	32	160	125	180	-	19	180	140	303	1300	700
89	38	160	125	180	-	19	180	140	303	1300	700
89	45	160	125	180	-	21	180	140	303	1300	700
89	57	160	125	180	140	22	180	140	310	1300	700
89	76	160	140	180	160	24	180	16	320	1300	700
89	89	160	160	180	180	27	180	180	330	1300	700
108	32	180	125	200	-	20	200	140	313	1300	700
108	38	180	125	200	-	20	200	140	313	1300	700
108	45	180	125	200	-	22	200	140	313	1300	700
108	57	180	125	200	140	23	200	140	320	1300	700
108	76	180	140	200	160	26	200	160	330	1300	700
108	89	180	160	200	180	29	200	180	340	1300	700
108	108	180	180	200	200	32	200	200	350	1300	700
133	32	225	125	250	-	30	225	140	325	1300	700
133	38	225	125	250	-	30	225	140	325	1300	700
133	45	225	125	250	-	31	225	140	325	1300	700

d, mm	d1, mm	PE mantle					Gal mantle		Center-to-center distance between pipes	Length of main pipe	Length of subsidiary pipe
		Type 1		Type 2			Gal mantle		Center-to-center distance between pipes	Length of main pipe	Length of subsidiary pipe
		D, mm	D1, mm	D, mm	D1, mm	m, kg	D, mm	D1, mm	H, mm	L, mm	L1, mm
133	57	225	125	250	140	32	225	140	333	1300	700
133	76	225	140	250	160	35	225	160	343	1300	700
133	89	225	160	250	180	37	225	180	353	1300	700
133	108	225	180	250	200	40	225	200	363	1300	700
133	133	225	225	250	250	49	225	225	375	1300	800
159	32	250	125	280	-	36	250	140	338	1400	700
159	38	250	125	280	-	37	250	140	338	1400	700
159	45	250	125	280	-	38	250	140	338	1400	700
159	57	250	125	280	140	39	250	140	345	1400	700
159	76	250	140	280	160	41	250	160	355	1400	700
159	89	250	160	280	180	44	250	180	365	1400	700
159	108	250	180	280	200	47	250	200	375	1400	700
159	133	250	225	280	250	56	250	225	388	1400	800
159	159	250	250	280	280	60	250	250	405	1400	800
219	32	315	125	355	-	61	315	140	370	1400	700
219	38	315	125	355	-	61	315	140	370	1400	700
219	45	315	125	355	-	62	315	140	370	1400	700
219	57	315	125	355	140	63	315	140	378	1400	700
219	76	315	140	355	160	65	315	160	388	1400	700
219	89	315	160	355	180	68	315	180	398	1400	700
219	108	315	180	355	200	71	315	200	408	1400	700
219	133	315	225	355	250	80	315	225	420	1400	800
219	159	315	250	355	280	84	315	250	435	1400	800
219	219	315	315	355	355	112	315	315	565	1400	800
273	32	400	125	450	-	109	400	140	413	1800	700
273	38	400	125	450	-	110	400	140	413	1800	700
273	45	400	125	450	-	110	400	140	413	1800	700
273	57	400	125	450	140	112	400	140	420	1800	700
273	76	400	140	450	160	113	400	160	430	1800	700
273	89	400	160	450	180	117	400	180	440	1800	700
273	108	400	180	450	200	119	400	200	450	1800	700
273	133	400	225	450	250	128	400	225	463	1800	800
273	159	400	250	450	280	131	400	250	475	1800	800
273	219	400	315	450	355	155	400	315	608	1800	800
273	273	400	400	450	400	200	400	400	650	1800	1000
325	32	450	125	500	-	144	450	140	438	1800	700
325	38	450	125	500	-	145	450	140	438	1800	700
325	45	450	125	500	-	146	450	140	438	1800	700
325	57	450	125	500	140	147	450	140	445	1800	700
325	76	450	140	500	160	149	450	160	455	1800	700
325	89	450	160	500	180	152	450	180	465	1800	700
325	108	450	180	500	200	154	450	200	475	1800	700
325	133	450	225	500	250	163	450	225	488	1800	800

d, mm	d1, mm	PE mantle					Gal mantle		Center-to-center distance between pipes	Length of main pipe	Length of subsidiary pipe
		Type 1		Type 2			Gal mantle		Center-to-center distance between pipes	Length of main pipe	Length of subsidiary pipe
		D, mm	D1, mm	D, mm	D1, mm	m, kg	D, mm	D, mm	H, mm	L, mm	L1, mm
325	159	450	250	500	280	163	450	250	500	1800	800
325	219	450	315	500	355	163	450	315	633	1800	800
325	273	450	400	500	450	222	450	400	675	1800	1000
325	325	450	450	500	500	275	450	450	713	1800	1100
426	32	560	125	630	-	205	560	140	493	1900	700
426	38	560	125	630	-	206	560	140	493	1900	700
426	45	560	125	630	-	207	560	140	493	1900	700
426	57	560	125	630	140	208	560	140	500	1900	700
426	76	560	140	630	160	210	560	160	510	1900	700
426	89	560	160	630	180	213	560	180	520	1900	700
426	108	560	180	630	200	215	560	200	530	1900	700
426	133	560	225	630	250	224	560	225	543	1900	800
426	159	560	250	630	280	229	560	250	555	1900	800
426	219	560	315	630	355	254	560	315	688	1900	800
426	273	560	400	630	450	292	560	400	730	1900	1000
426	325	560	450	630	500	329	560	450	763	1900	1100
426	426	560	560	630	630	444	560	560	913	1900	1200
530	76	710	140	-	160	269	675	160	585	2000	700
530	89	710	160	-	180	272	675	180	595	2000	700
530	108	710	180	-	200	275	675	200	605	2000	700
530	133	710	225	-	250	283	675	225	618	2000	800
530	159	710	250	-	280	287	675	250	630	2000	800
530	219	710	315	-	355	312	675	315	763	2000	800
530	273	710	400	-	450	350	675	400	805	2000	1000
530	325	710	450	-	500	388	675	450	830	2000	1100
530	426	710	560	-	630	491	675	560	985	2000	1200
530	530	710	710	-	-	614	675	675	1160	2000	1200
630	89	800	160	-	180	321	775	180	640	2000	700
630	108	800	180	-	200	324	775	200	650	2000	700
630	133	800	225	-	250	333	775	225	663	2000	800
630	159	800	250	-	280	337	775	250	675	2000	800
630	219	800	315	-	355	363	775	315	808	2000	800
630	273	800	400	-	450	401	775	400	850	2000	1000
630	325	800	450	-	500	440	775	450	875	2000	1100
630	426	800	560	-	630	514	775	560	1030	2000	1200
630	530	800	710	-	-	649	775	675	1205	2000	1200
630	630	800	800	-	-	752	775	775	1250	2000	1200
720	108	900	180	-	200	374	875	200	700	2000	700
720	133	900	225	-	250	383	875	225	713	2000	800
720	159	900	250	-	280	387	875	250	725	2000	800
720	219	900	315	-	355	413	875	315	858	2000	800
720	273	900	400	-	450	451	875	400	900	2000	1000
720	325	900	450	-	500	490	875	450	925	2000	1100

d, mm	d1, mm	PE mantle					Gal mantle		Center-to-center distance between pipes	Length of main pipe	Length of subsidiary pipe
		Type 1		Type 2			Gal mantle		Center-to-center distance between pipes	Length of main pipe	Length of subsidiary pipe
		D, mm	D1, mm	D, mm	D1, mm	m, kg	D, mm	D1, mm	H, mm	L, mm	L1, mm
720	426	900	560	-	630	557	875	560	1080	2000	1200
720	530	900	710	-	-	696	875	675	1255	2000	1200
720	630	900	800	-	-	785	875	775	1300	2000	1200
720	720	900	900	-	-	913	875	875	1500	2000	1200
820	133	1000	225	1100	250	511	975	225	763	2000	800
820	159	1000	250	1100	280	516	975	250	775	2000	800
820	219	1000	315	1100	355	540	975	315	908	2000	800
820	273	1000	400	1100	450	578	975	400	950	2000	1000
820	325	1000	450	1100	500	614	975	450	975	2000	1100
820	426	1000	560	1100	630	683	975	560	1130	2000	1200
820	530	1000	710	1100	-	743	975	675	1305	2000	1200
820	630	1000	800	1100	-	832	975	775	1350	2000	1200
820	720	1000	900	1100	-	976	975	875	1550	2000	1200
820	820	1000	1000	1100	1100	1143	975	975	1800	2000	1200
920	159	1100	250	1200	280	561	1075	250	825	2100	800
920	219	1100	315	1200	355	582	1075	315	958	2100	800
920	273	1100	400	1200	450	651	1075	400	1000	2100	1000
920	325	1100	450	1200	500	721	1075	450	1025	2100	1100
920	426	1100	560	1200	630	830	1075	560	1180	2100	1200
920	530	1100	710	1200	-	965	1075	675	1355	2100	1200
920	630	1100	800	1200	-	998	1075	775	1400	2100	1200
920	720	1100	900	1200	-	1148	1075	875	1600	2100	1200
920	820	1100	1000	1200	1100	1303	1075	975	1850	2100	1250
920	920	1100	1100	1200	1200	1721	1075	1075	2000	2100	1300
1020	219	1200	315	-	355	658	1175	315	1008	2100	800
1020	273	1200	400	-	450	736	1175	400	1050	2100	1000
1020	325	1200	450	-	500	812	1175	450	1075	2100	1100
1020	426	1200	560	-	630	913	1175	560	1230	2100	1200
1020	530	1200	710	-	-	1054	1175	675	1405	2100	1200
1020	630	1200	800	-	-	1090	1175	775	1450	2100	1200
1020	720	1200	900	-	-	973	1175	875	1650	2100	1200
1020	820	1200	1000	-	1100	1365	1175	975	1900	2100	1200
1020	920	1200	1100	-	1200	1524	1175	1075	2050	2100	1300
1020	1020	1200	1200	-	-	1688	1175	1175	2200	2100	1300

An example of the type codes in the ordered specification:

Paralleled T-socket with outer diameter of the main pipe 426 mm, with thickness of pipe wall 7 mm and a subdivision of 426 mm in diameter, with thickness of pipe wall 7 mm, , with isolation of type 1 from polyurethane foam, in polyethylene casing:

T-socket paralleled St426*7-426*7-1-PUF-PEM

Paralleled T-socket with outer diameter of the main pipe 426 mm, with thickness of pipe wall 7 mm and a subsidiary pipe of 426 mm in diameter, with thickness of pipe wall 7 mm, , with isolation from polyurethane foam, in galvanized casing:

T-socket paralleled St426*7-426*7-PUF-GalM
