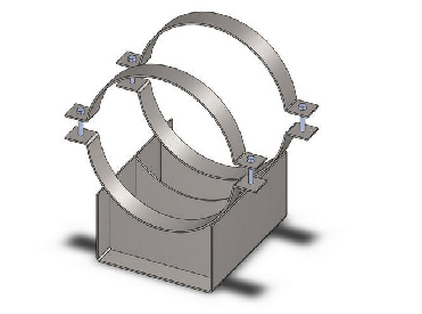

Sliding supports of pipe-lines support the pipe-line but do not prevent its shifting motions at temperature changes. Sliding supports have to absorb vertical load from the weight of the loaded pipe-line. They provide the possibility of thermal displacement of the pipe-line in the direction of its axis and in the across-track direction.
|

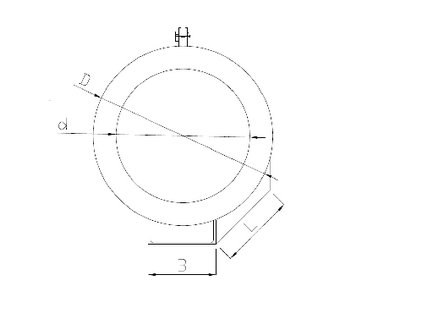

d, mm |
PE mantle |
B, mm |
L, mm |
||
|
Type 1 |
Type 2 |
||||
|
D, mm |
D, mm |
m, kg |
|||
|
32 |
125 |
- |
8,5 |
100 |
320 |
|
38 |
125 |
- |
8,5 |
100 |
320 |
|
45 |
125 |
- |
8,5 |
100 |
320 |
|
57 |
125 |
140 |
8,5 |
100 |
320 |
|
76 |
140 |
160 |
9,2 |
100 |
320 |
|
89 |
160 |
180 |
9,9 |
100 |
320 |
|
108 |
180 |
200 |
11,0 |
140 |
470 |
|
133 |
225 |
250 |
12,0 |
140 |
470 |
|
159 |
250 |
280 |
13,6 |
140 |
470 |
|
219 |
315 |
355 |
45,0 |
280 |
670 |
|
273 |
400 |
450 |
45,0 |
280 |
670 |
|
325 |
450 |
500 |
59,0 |
280 |
670 |
|
426 |
560 |
630 |
80,0 |
420 |
670 |
|
530 |
710 |
- |
100,0* |
420 |
670 |
|
630 |
800 |
- |
210* |
600 |
770 |
|
720 |
900 |
- |
220* |
600 |
770 |
|
820 |
1000 |
1100 |
280 |
600 |
970 |
|
920 |
1100 |
1200 |
315 |
800 |
970 |
|
1020 |
1200 |
- |
317* |
800 |
970 |
An example of the type codes in the ordered specification:
The sliding support for the pipe with diameter 325 mm, with isolation of type 1 from polyurethane foam, in polyethylene (galvanized) casing:
- Sliding support St325-1-PUF-PEM
- Sliding support St325-1-PUF- GalM
