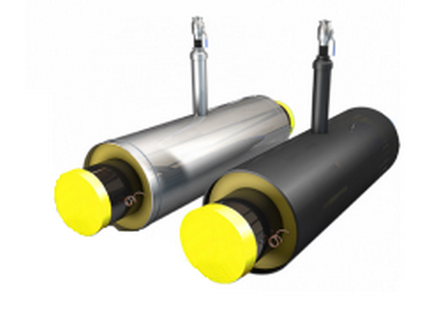

T-socket with ball valve for water dumping

The T-sockets with a ball valve for water dumping in PUF isolation are installed in the heat chamber in close proximity to the pipe-line control ball valves of the part of the pipe-line for fulfilling the process of dumping of the heat carrier from the systems at preventive and renovation works controlled by the maintenance staff.

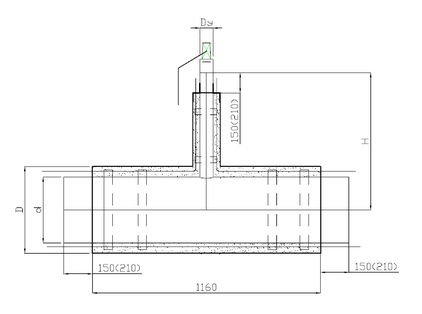

d, mm	DN of ball valve for water dumping, mm	H, mm	PE mantle			Gal mantle
			Type 1	Type 2		Gal mantle
			D, mm	D, mm	m, kg	D, mm
32	25	541	125	-	8	140
38	25	544	125	-	9	140
45	32	548	125	-	10	140
57	32	554	125	140	11	140
76	32	560	140	160	13	160
89	32	570	160	180	17	180
108	32	580	180	200	19	200
133	32	590	225	250	28	225
159	32	605	250	280	30	250
219	32	635	315	355	52	315
273	32	665	400	450	74	400
325	32	690	450	500	97	450
426	32	740	560	630	129	560
530	50	790	710	-	162	675
630	50	840	800	-	191	775
720	50	870	900	-	221	875
820	50	940	1000	1100	295	975
920	50	985	1100	1200	332	1075
1020	50	1035	1200	-	381	1175

An example of the type codes in the ordered specification:

T-socket with a ball valve for water dumping, outer diameter of the main pipe 426 mm, with thickness of pipe wall 7 mm and nominal diameter of the ball valve for water dumping 32 mm, with isolation of type 1 from polyurethane foam, in polyethylene (galvanized) casing:

T-socket with ball valve for water dumping St426*7-32-1-PUF-PEM

T-socket with ball valve for water dumping St273*7-32-PUF-GalM

Notes:

The nominal diameter of the ball valve for water dumping and also the height H can be set by the project.
