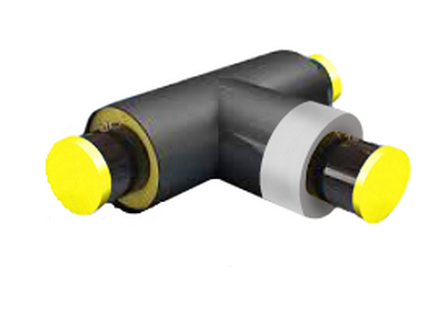

The T-socket with MHPI is a product designed for connecting side branches to the major pipe-line. It is also installed at the crossing line of the insulated pipe into the steel one.
For the characteristics of the product see section “T-socket”.
An example of the type codes in the ordered specification:
T-socket with outer diameter of the main pipe 530 mm, with thickness of pipe wall 7 mm and diameter of the subsidiary pipe 273 mm, thickness of pipe wall 7 mm, with isolation of type 1 from polyurethane foam, , in polyethylene casing, with a metal head plug of isolation 200 mm in length:
T-socket St530*7-273*7-1-PUF-PEM-200 with MHPI
T-socket with diameter 530 mm, with thickness of pipe wall 7 mm, and diameter of the subsidiary pipe 237 mm, thickness of pipe wall 7 mm, with isolation from polyurethane foam, , in galvanized casing, with a metal head plug of isolation 200 mm in length:
T-socket St530*7-273*7-PUF-GalM-200 with MHPI
Notes:

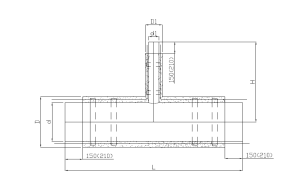

The distance from the pipe end to the metal head plug of isolation is 70 mm – for diameters of 219 inclusive, for all other diameters it is 110 mm.
