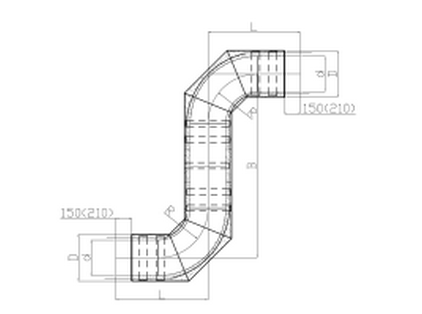

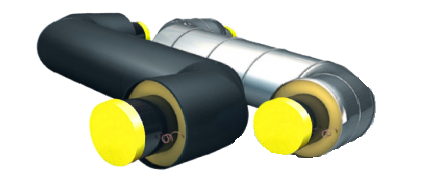

Z-shaped element 90° is a formed part for the heat supply system which performs the function of a compensating element as a part of the pipe-line. The installation of the product can be both horizontal and vertical.
|
d, mm |
Standard sizes |
PE mantle |
|||
|
Type 1 |
Type 2 |
||||
|
L, mm |
B, mm |
D, mm |
D,Mm |
m, kg |
|
|
32 |
1000 |
2000 |
125 |
- |
17 |
|
38 |
1000 |
2000 |
125 |
- |
19 |
|
45 |
1000 |
2000 |
125 |
- |
21 |
|
57 |
1000 |
2000 |
125 |
140 |
24 |
|
76 |
1000 |
2000 |
140 |
160 |
38 |
|
89 |
1000 |
2000 |
160 |
180 |
45 |
|
108 |
1000 |
2000 |
180 |
200 |
63 |
|
133 |
1000 |
2000 |
225 |
250 |
83 |
|
159 |
1000 |
2000 |
250 |
280 |
112 |
|
219 |
1000 |
2000 |
315 |
355 |
197 |
|
273 |
1000 |
2000 |
400 |
450 |
248 |
|
325 |
1050 |
2100 |
450 |
500 |
333 |
|
426 |
1100 |
2200 |
560 |
630 |
489 |
|
530 |
1200 |
2400 |
710 |
- |
805 |
|
630 |
1280 |
2560 |
800 |
- |
969 |
|
720 |
1370 |
2740 |
900 |
- |
1252 |
|
820 |
1470 |
2940 |
1000 |
1100 |
1269 |
|
920 |
1570 |
3140 |
1100 |
1200 |
1518 |
|
1020 |
1620 |
3240 |
1200 |
- |
2289 |
An example of the type codes in the ordered specification:
Z-shaped element 90° with outer diameter 530 mm, with thickness of pipe wall 7 mm, with isolation type 1 from polyurethane foam, in polyethylene casing:
- Z-shaped element St530*7-90°-1-PUF-PEM
Z-shaped element 90° of diameter 530 mm, with thickness of pipe wall 7 mm, with isolation from polyurethane foam, in galvanized casing:
- Z-shaped element St530*7-90°-PUF-GalM
