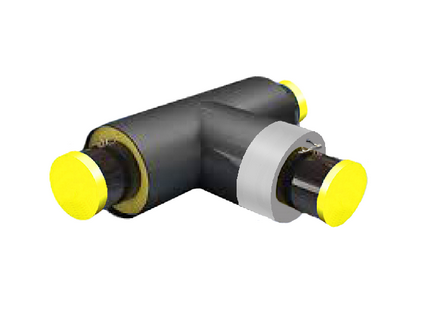

The T-socket with MHPI is a product designed for connecting side branches to the major pipe-line. It is also installed at the crossing line of the insulated pipe into the steel one. The outlet cable is used for connecting to the terminal units of the system ORC.
For the characteristics of the product see section “T-socket”.
An example of the type codes in the ordered specification:
T-socket with outer diameter of the main pipe 530 mm, with thickness of pipe wall 7 mm and diameter of the subsidiary pipe 273 mm, thickness of pipe wall 7 mm, with isolation of type 1 from polyurethane foam, , in polyethylene (galvanized) casing, with a metal head plug of isolation 200 mm in length and an outlet cable:
T-socket St530*7-273*7-1-PUF-PEM-200K with MHPI and OC
T-socket St530*7-273*7-1-PUF-GalM-200K with MHPI and OC
Notes:

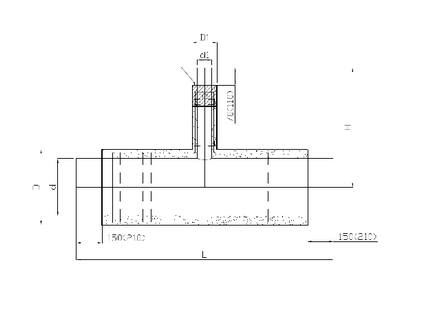

The distance from the pipe end to the metal head plug of isolation is 70 mm – for pipes of diameters 219 inclusive, for all other diameters it is 110 mm.
