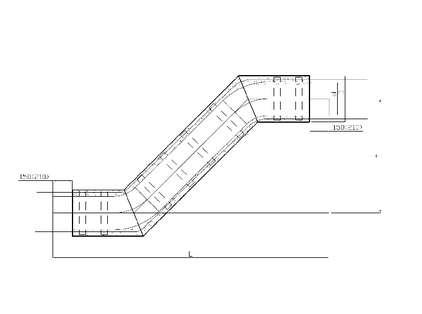

Z-shaped element 45°

Z-shaped element 45° is a formed part designed for underground and overground paying of heat supply systems which performs the function of a compensating element as a part of the pipe-line.

d, mm	Standard sizes		PE mantle			Gal mantle
	Standard sizes		Type 1	Type 2		Gal mantle
	L, mm	H, mm	D, mm	D,Mm	m, kg	D, mm
32	2000	1000	125	-	17	140
38	2000	1000	125	-	19	140
45	2000	1000	125	-	21	140
57	290	960	125	140	7	140
76	310	1120	140	160	9	160
89	330	1175	160	180	11	180
108	350	1235	180	200	16	200
133	400	1270	225	250	23	225
159	430	1330	250	280	30	250
219	505	1470	315	355	59	315
273	600	1630	400	450	93	400
325	750	1945	450	500	140	450
426	880	2205	560	630	233	560
530	2400	1200	710	-	805	675
630	2560	1280	800	-	969	775
720	2740	1370	900	-	1252	875
820	2940	1470	1000	1100	1269	975
920	3140	1570	1100	1200	1518	1075
1020	3240	1620	1200	-	2289	1175

An example of the type codes in the ordered specification:

Z-shaped element 45° with outer diameter 426 mm, with thickness of pipe wall 7 mm, 2205 in length, 880 mm in height, with isolation type 1 from polyurethane foam, , in polyethylene casing:

Z-shaped element St426*7-2205*880-45°-1-PUF-PEM

Z-shaped element 45° of diameter 426 mm, with thickness of pipe wall 7 mm, 2106 in length, 810 mm in height, with isolation from polyurethane foam, , in galvanized casing:

Z-shaped element St426*7-2205*880-45°-PUF-GalM
