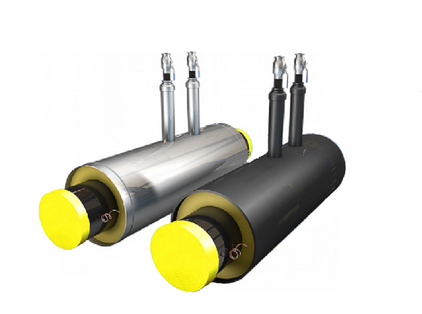

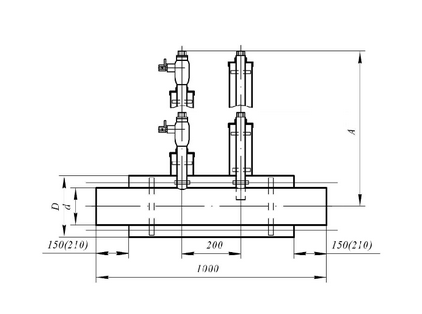

The element of the pipe-line with a flanged socket for installation of pressure and temperature sensors in PUF isolation is a component element of the pipe-line designed for installation of sensors of pressure control and temperature control inside the pipe-line.
|
d, mm |
DN |
PE mantle
|
Gal mantle
|
A, mm |
||
|
Type 1
|
Type 2
|
|||||
|
D, mm
|
D, mm
|
m, kg |
D, mm
|
|||
|
159 |
32 |
250 |
280 |
24 |
250 |
425 |
|
219 |
32 |
315 |
355 |
43 |
315 |
455 |
|
273 |
32 |
400 |
450 |
64 |
400 |
480 |
|
325 |
32 |
450 |
500 |
77 |
450 |
510 |
|
426 |
32 |
560 |
630 |
105 |
560 |
560 |
|
530 |
50 |
710 |
- |
142 |
675 |
625 |
|
630 |
50 |
800 |
- |
170 |
775 |
675 |
|
720 |
50 |
900 |
- |
199 |
875 |
720 |
|
820 |
50 |
1000 |
1100 |
255 |
975 |
770 |
|
920 |
50 |
1100 |
1200 |
309 |
1075 |
820 |
|
1020 |
50 |
1200 |
- |
364 |
1175 |
870 |
An example of the type codes in the ordered specification:
The element of the pipe-line with a flanged socket for installation of pressure and temperature sensors with outer diameter 159 mm, with thickness of pipe wall 5 mm, with isolation of type 1 from polyurethane foam, in polyethylene casing:
Element of the pipe-line with a flanged socket for installation of pressure and temperature sensors St159*5-1-PUF-PEM-PT
The element of the pipe-line with a flanged socket for installation of pressure and temperature sensors with outer diameter 159 mm, with thickness of pipe wall 5 mm, with isolation from polyurethane foam, in galvanized casing:
Element of the pipe-line with a flanged socket for installation of pressure and temperature sensors St159*5-PUF- GalM-PT
