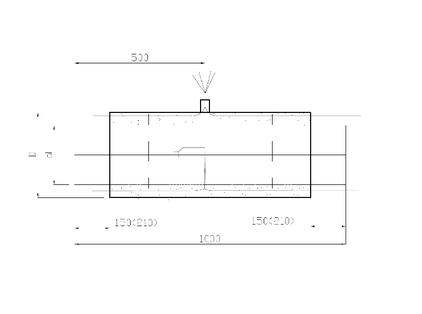

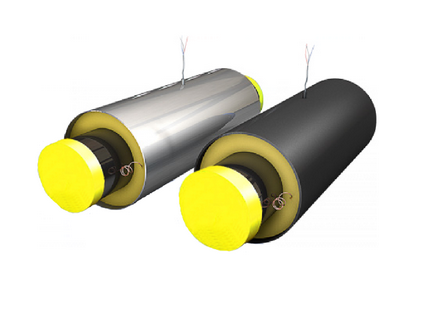

The element of the pipe-line with an outlet cable in PUF isolation is a component element of the pipe-line and the system of online remote control (ORC) and serves for connecting this element to the intermediate switching terminal with a 5-strand outlet cable.
|
d, mm |
PE mantle
|
Gal mantle
|
||
|
Type 1
|
Type 2
|
|
||
|
D, mm
|
D, mm
|
m, kg |
D, mm
|
|
|
32 |
125 |
- |
5 |
140 |
|
38 |
125 |
- |
5 |
140 |
|
45 |
125 |
- |
6 |
140 |
|
57 |
125 |
140 |
7 |
140 |
|
76 |
140 |
160 |
9 |
160 |
|
89 |
160 |
180 |
11 |
180 |
|
108 |
180 |
200 |
14 |
200 |
|
133 |
225 |
250 |
18 |
225 |
|
159 |
250 |
280 |
24 |
250 |
|
219 |
315 |
355 |
43 |
315 |
|
273 |
400 |
450 |
64 |
400 |
|
325 |
450 |
500 |
77 |
450 |
|
426 |
560 |
630 |
105 |
560 |
|
530 |
710 |
- |
142 |
675 |
|
630 |
800 |
- |
170 |
775 |
|
720 |
900 |
- |
199 |
875 |
|
820 |
1000 |
1100 |
255 |
975 |
|
920 |
1100 |
1200 |
309 |
1075 |
|
1020 |
1200 |
- |
364 |
1175 |
An example of the type codes in the ordered specification:
Element of pipe-line with outlet cable with outer diameter 325 mm, with thickness of pipe wall 7 mm, with isolation of type 1 from polyurethane foam, in polyethylene casing:
Element of pipe-line with outlet cable St325*7-1-PUF-PEM
Element of pipe-line with outlet cable with outer diameter 325 mm, with thickness of pipe wall 7 mm, with isolation from polyurethane foam, in galvanized casing:
Element of pipe-line with outlet cable St325*7-PUF- GalM
