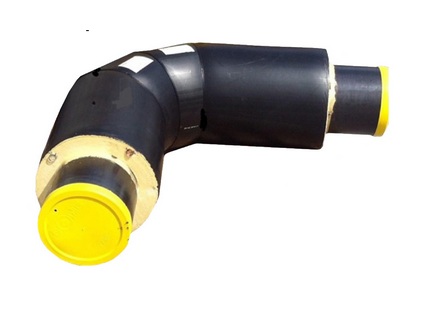

Ordinary elbow bend

The elbow bend is used to connect the pipes in places of turns (bends). It has different lengths of arms and turn angles, which makes this element of the pipe-line multi-operated and irreplaceable. Elbow bends allow to project and build pipe-line systems with a difficult subdivided structure changing the direction of the pipe-line in a horizontal and vertical plane at any angle, and also to reduce the usage of special compensating devices (starting and bellows expansion compensators), as one or several elbow bends are places of natural self-compensation of the pipe-line.

Optionally, at the plane JSC “Isoplus Central Asia” we produce elbow bends of any angles and different factory length.

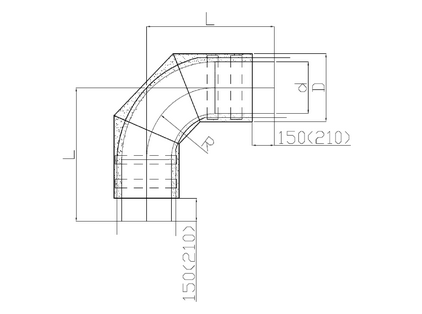

d, mm	R, mm	PE mantle		GalM	Elbow bend angle 90°		Elbow bend angle 60°		Elbow bend angle 45°		Elbow bend angle 30°
		Type 1	Type 2	GalM	Elbow bend angle 90°		Elbow bend angle 60°		Elbow bend angle 45°		Elbow bend angle 30°
		D, mm	D, mm	D, mm	L, mm	m, kg	L, mm	m, kg	L, mm	m, kg	L, mm	m, kg
3D (R=1,5DN)
32 х 3,0	38	125	-	140	1000	10	1000	10	1000	10	1000	10
38 х 3,0	48	125	-	140	1000	11	1000	11	1000	11	1000	11
45 х 3,0	60	125	-	140	1000	12	1000	12	1000	12	1000	12
57 х 3,0	75	125	140	140	1000	13	1000	13	1000	13	1000	13
76 х 3,0	100	140	160	160	1000	19	1000	19	1000	19	1000	19
89 х 4,0	120	160	180	180	1000	24	1000	24	1000	24	1000	24
108 х 4,0	150	180	200	200	1000	31	1000	32	1000	32	1000	32
133 х 4,0	190	225	250	225	1000	41	1000	42	1000	43	1000	43
159 х 4,5	225	250	280	250	1000	56	1000	58	1000	59	1000	58
219 х 6,0	300	315	355	315	1000	97	1000	103	1000	106	1000	104
273 х 7,0	375	400	450	400	1000	121	1000	130	1000	136	1000	132
325 х 7,0	450	450	560	450	1050	164	860	150	786	140	720	134
426 х 7,0	600	560	630	560	1100	251	889	220	807	220	734	185
530 х 7,0	750	710	-	675	1390	252	870	161	900	184	761	237
630 х 8,0	900	800	-	775	1420	339	870	215	890	278	819	267
720 х 8,0	1050	900	-	875	1450	403	870	253	840	305	843	343
820 х 9,0	1200	1000	1100	975	1700	522	950	347	780	348	820	510
920 х 10,0	1350	1100	1200	1075	1800	697	1040	436	900	451	846	593
1020 х 11,0	1500	1200	-	1175	2000	881	1100	543	950	567	874	698

2D (R=DN)
530 х 7,0	500	710	-	675	1200	373	946	357	848	252	761	237
630 х 8,0	600	800	-	775	1200	387	945	430	848	282	761	248
720 х 8,0	700	900	-	875	1370	546	1066	564	948	391	843	343
820 х 9,0	800	1000	1100	975	1470	782	1073	656	990	656	820	510
920 х 10,0	900	1100	1200	1075	1570	890	1132	780	1032	758	846	593
1020 х 11,0	1000	1200	-	1175	1620	1015	1189	927	1022	756	874	698

An example of the type codes in the ordered specification:

The steel elbow bend of diameter 1020 mm, with thickness of pipe wall 11 mm, 90°, with isolation of type 1 from polyurethane foam, in polyethylene casing:

Elbow bend St1020*11-90°-1-PUF-PEM

The steel elbow bend of diameter 1020 mm, with thickness of pipe wall 11 mm, 90°, with isolation from polyurethane foam, in galvanized casing:

Elbow bend St1020*11-90°-PUF-GalM

Notes:

The steel part of the elbow bend can be made undivided and bent from a pipe or welded with a return or segmented bend. The thickness of the wall of the steel return or segmented bends are accepted according to the National State Standard 17375-2001, Standard 30753-2001, standard series 5.903-13 for the thickness of the main pipe. The standard sizes of produced elbow bends are shown in the table. At the request of the customer, the elbow bends can be made with different angles α. It is possible to produce elbow bends from flat steel. It is possible to produce elbow bends with increased length of arms and thickness of walls.
