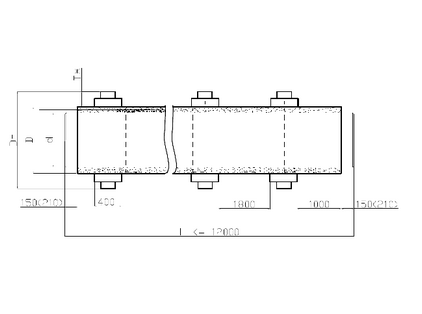

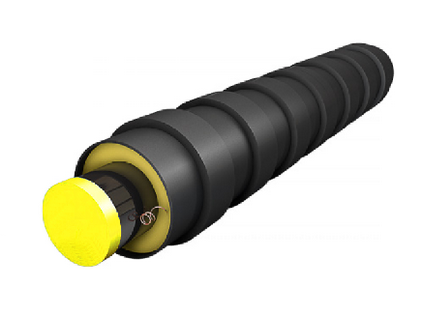

The pipe reinforced with bandages in a polyethylene mantle is a special variant of production of a preinsulated pipe in a polyethylene bandage for underground trenchless pipe laying. It is used in laying at the site with high load on the surface of PUF pipe-line – under automobile roads and similar infrastructure. Such pipes are laid in steel protective casings of larger outer diameter which give additional protection from pressure of ground and transport.
|
Outer diameter |
PE mantle |
|||||||
|
Type 1 |
Type 2 |
|||||||
|
Thickness of bandage |
D, mm |
Diameter of bandage |
m, kg |
Thickness of bandage |
D, mm |
Diameter of bandage |
m, kg |
|
|
32х3,0 |
6,0 |
125 |
137,0 |
5 |
- |
- |
- |
- |
|
38х3,0 |
6,0 |
125 |
137,0 |
5 |
- |
- |
- |
- |
|
45х3,0 |
6,0 |
125 |
137,0 |
6 |
- |
- |
- |
- |
|
57х3,0 |
6,0 |
125 |
137,0 |
7 |
6,0 |
140 |
152,0 |
8 |
|
76х3,0 |
6,0 |
140 |
152,0 |
10,3 |
6,0 |
160 |
172,0 |
11 |
|
89х4,0 |
6,0 |
160 |
172,0 |
11,3 |
6,4 |
180 |
192,8 |
12 |
|
108х4,0 |
6,4 |
180 |
192,8 |
14 |
7,0 |
200 |
214,0 |
15 |
|
133х4,0 |
7,8 |
225 |
240,6 |
20 |
9,8 |
250 |
296,6 |
21 |
|
159х4,5 |
9,8 |
250 |
269,6 |
24 |
9,8 |
280 |
299,6 |
25 |
|
219х6,0 |
10,0 |
315 |
335,0 |
41 |
10,0 |
355 |
375,0 |
44 |
|
273х7,0 |
11,2 |
400 |
422,4 |
62 |
14,0 |
450 |
478,0 |
66 |
|
325х7,0 |
14,0 |
450 |
478,0 |
75 |
14,0 |
500 |
528,0 |
80 |
|
426х7,0 |
15,8 |
560 |
591,6 |
102 |
17,8 |
630 |
665,6 |
109 |
|
530х7,0 |
20,0 |
710 |
750,0 |
140 |
- |
- |
- |
- |
|
630х8,0 |
24,8 |
800 |
849,6 |
167 |
- |
- |
- |
- |
|
720х8,0 |
24,8 |
900 |
949,6 |
195 |
- |
- |
- |
- |
|
820х9,0 |
29,8 |
1000 |
1059,6 |
252 |
29,8 |
1100 |
1159,6 |
268 |
|
920х10,0 |
29,8 |
1100 |
1159,6 |
303 |
29,8 |
1200 |
1259,6 |
322 |
|
1020х11,0 |
29,8 |
1200 |
1259,6 |
354 |
- |
- |
- |
- |
An example of the type codes in the ordered specification:
The steel pipe of outer diameter 133 mm, with thickness of pipe wall 4 mm, with isolation of type 1 from polyurethane foam, reinforced with bandages, in polyethylene casing:
- Pipe St133*4-1-PUF-PEM-B
Notes:
The pipe reinforced with bandages is produced only in a polyethylene casing.
The weight of products is introduced according to the recommended thickness of the steel pipe wall.
