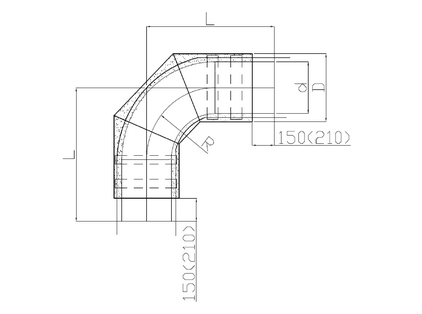

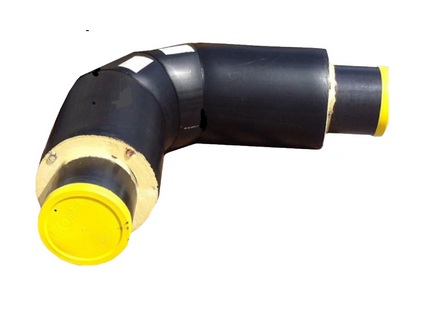

Shortened elbow bend

The shortened elbow bend is a formed part designed for changing the direction of the pipe-line. It is installed in the places with limited space.

An example of the type codes in the ordered specification:

The shortened steel elbow bend of diameter 57 mm, with thickness of pipe wall 3 mm, 90°, with isolation from polyurethane foam,in type 1,in polyethylene casing:

• Elbow bend St57*3-90°-1-PUF-PEM-Sh

The shortened steel elbow bend of diameter 57 mm, with thickness of pipe wall 3 mm, 90°, with isolation from polyurethane foam, , in galvanized casing:

• Elbow bend St57*3-90°-PUF-GalM-Sh

Notes:

The steel part of the elbow bend can be made undivided and bent from a pipe or welded with a return or segmented bend. The thickness of the wall of the steel return or segmented bends are accepted according to the National State Standard 17375-2001, Standard 30753-2001, standard series 5.903-13 for the thickness of the main pipe. The standard sizes of produced elbow bends are shown in the table. At the request of the customer, the elbow bends can be made with different angles α. It is possible to produce elbow bends from flat steel. It is possible to produce elbow bends with increased length of arms and thickness of walls.
