Shortened increaser

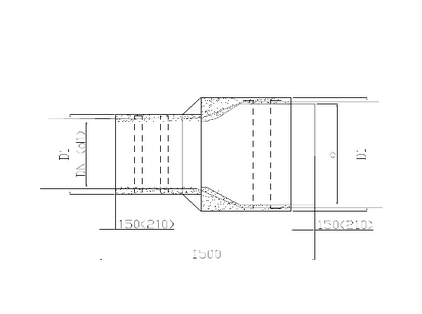

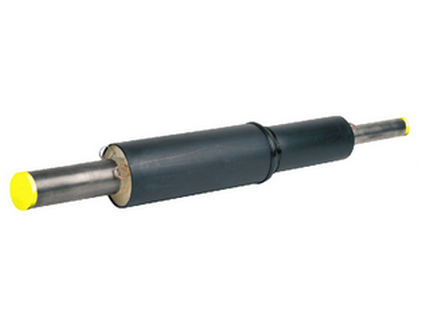

The shortened increaser is a connecting element of the pipe-lines of different diameters. It is installed in places with limited space.

d, mm

PE mantle

PE mantle

Length of increaser

Тype 1,
D, mm

Тype 2,
D, mm

d1, mm

Тype 1,
D1, mm

Тype 2,
D1, mm

m, kg

L, mm

45

125

-

32

125

-

4

750

57

125

140

32

125

-

4

780

57

125

140

38

125

-

4

750

57

125

140

45

125

-

4

750

76

140

160

38

125

-

5

750

76

140

160

45

125

-

5

750

76

140

160

57

125

140

5

750

89

160

180

45

125

-

6

780

89

160

180

57

125

140

6

780

89

160

180

76

140

160

7

750

108

180

200

57

140

140

7

800

108

180

200

76

140

160

9

780

108

180

200

89

160

180

9

750

133

225

250

57

140

140

11

800

133

225

250

76

140

160

12

800

133

225

250

89

160

180

12

780

133

225

250

108

180

200

12

750

159

250

280

57

140

160

14

800

159

250

280

76

140

160

15

800

159

250

280

89

160

180

15

800

159

250

280

108

180

200

16

780

159

250

280

133

225

250

16

750

219

315

355

57

140

140

17

800

219

315

355

76

140

160

23

800

219

315

355

89

160

180

23

800

219

315

355

108

180

200

24

800

219

315

355

133

225

250

25

780

219

315

355

159

250

280

25

750

273

400

450

108

180

200

27

860

273

400

450

133

225

250

33

860

273

400

450

159

250

280

34

840

273

400

450

219

315

355

36

840

325

450

500

108

180

200

41

860

325

450

500

133

225

250

41

860

325

450

500

159

250

280

41

860

325

450

500

219

315

355

41

860

325

450

500

273

400

450

54

920

426

560

630

159

250

280

55

1070

426

560

630

219

315

355

75

1070

426

560

630

273

400

450

85

1070

426

560

630

325

560

630

96

1070

530

710

-

159

250

280

115

1220

530

710

-

219

315

355

121

1220

530

710

-

273

400

450

126

1220

530

710

-

325

450

500

130

1220

530

710

-

426

560

630

134

1220

630

800

-

325

450

500

135

1220

630

800

-

426

560

630

141

1220

630

800

-

530

710

-

161

1220

720

900

-

426

560

630

171

1320

720

900

-

530

710

-

191

1320

720

900

-

630

800

-

206

1320

820

1000

1100

426

560

-

178

1320

820

1000

1100

530

710

-

218

1320

820

1000

1100

630

800

-

218

1320

820

1000

1100

720

900

-

222

1320

920

1100

1200

530

710

-

287

1320

920

1100

1200

630

800

-

293

1320

920

1100

1200

720

900

-

314

1320

920

1100

1200

820

1000

-

321

1320

1020

1200

-

530

710

-

310

1320

1020

1200

-

630

800

-

312

1320

1020

1200

-

720

900

-

340

1320

1020

1200

-

820

1000

1100

347

1320

1020

1200

-

920

1100

1200

342

1320

An example of the type codes in the ordered specification:

Shortened increaser from steel pipe of 219 mm in diameter, with thickness of pipe wall 6 mm, to steel pipe of 76 mm in diameter, with thickness of pipe wall 4 mm, with isolation of type 1 from polyurethane foam, in polyethylene casing:

  • Increaser St219*6-76*4-1-PUF-PEM-Sh

Shortened increaser from steel pipe of 219 mm in diameter, with thickness of pipe wall 6 mm, to steel pipe of 76 mm in diameter, with thickness of pipe wall 4 mm, with isolation from polyurethane foam, in galvanized casing:

  • Increaser St219*6-76*4-PUF-GalM-Sh
