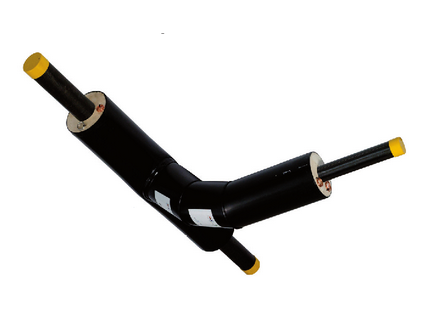

Shortened three-way offset

The shortened three-way offset is a a multicomponent assembly of the pipe-line system with three connector ends, which is designed for connecting side subsidiary pipes to the main pipe-line and flow distribution in pipe-lines. Herewith the operating environment changes its direction at the angle 90°. It is installed in places with limited space.

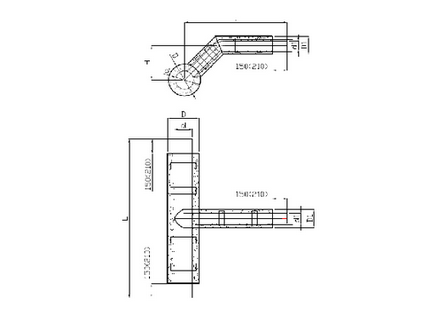

Size of main pipe

Size of offset

Height from axis
of main pipe to
axis of offset

Weight
of item

d, mm

PE mantle

Length
L, mm

d1, mm

PE mantle

Length
l, mm

Тype 1

Тype 2

m, kg

Тype 1

Тype 2

Тype 1

Тype 2

D, mm

D, mm

D1, mm

D1, mm

H, mm

H, mm

32

125

-

725

32

125

-

610

225

-

7

38

125

-

725

32

125

-

610

225

-

7

38

125

-

725

38

125

-

610

225

-

7

45

125

-

725

32

125

-

610

225

-

8

45

125

-

725

38

125

-

610

225

-

8

45

125

-

725

45

125

-

610

225

-

11

57

125

140

725

32

125

-

625

225

-

9

57

125

140

725

38

125

-

625

225

-

9

57

125

140

725

45

125

-

625

225

-

9

57

125

140

725

57

125

140

625

225

233

10

76

140

160

725

32

125

-

635

233

-

17

76

140

160

725

38

125

-

635

233

-

17

76

140

160

725

45

125

-

635

233

-

17

76

140

160

725

57

125

140

635

233

240

17

76

140

160

725

76

140

160

655

240

250

19

89

160

180

725

32

125

-

645

243

-

16

89

160

180

725

38

125

-

645

243

-

16

89

160

180

725

45

125

-

645

243

-

16

89

160

180

725

57

125

140

645

243

250

16

89

160

180

725

76

140

160

665

250

260

18

89

160

180

725

89

160

180

680

260

270

20

108

180

200

725

32

125

-

655

253

-

23

108

180

200

725

38

125

-

655

253

-

23

108

180

200

725

45

125

-

655

253

-

23

108

180

200

725

57

125

140

655

253

260

23

108

180

200

740

76

140

160

675

260

270

25

108

180

200

760

89

160

180

690

270

280

26

108

180

200

780

108

180

200

715

280

290

29

133

225

250

725

32

125

-

680

275

-

17

133

225

250

725

38

125

-

680

275

-

19

133

225

250

725

45

125

-

680

275

-

20

133

225

250

725

57

125

140

680

275

283

20

133

225

250

740

76

140

160

700

283

293

24

133

225

250

760

89

160

180

715

293

303

26

133

225

250

780

108

180

200

740

303

313

28

133

225

250

825

133

225

250

830

325

338

36

159

250

280

725

32

125

-

695

288

-

23

159

250

280

725

38

125

-

695

288

-

23

159

250

280

725

45

125

-

695

288

-

24

159

250

280

725

57

125

140

695

288

295

24

159

250

280

740

76

140

140

715

295

305

27

159

250

280

760

89

160

180

730

305

315

29

159

250

280

780

108

180

200

755

315

325

32

159

250

280

825

133

225

250

845

338

350

39

159 250 280 850 159 250 280 875 350 365 45
219 315 355 725 32 125 - 730 320 - 37
219 315 355 725 38 125 - 730 320 - 37
219 315 355 725 45 125 - 730 320 - 38
219 315 355 725 57 125 140 730 320 328 39
219 315 355 740 76 140 160 750 328 338 41
219 315 355 760 89 160 180 770 338 348 44
219 315 355 780 108 180 200 790 348 358 47
219 315 355 825 133 225 250 885 370 383 55
219 315 355 850 159 250 280 915 383 398 61
219 315 355 925 219 315 355 980 415 435 84
273 400 450 845 38 125 - 780 363 - 52
273 400 450 845 45 - - 780 363 - 53
273 400 450 845 57 125 140 780 363 370 54
273 400 450 860 76 140 160 800 370 380 56
273 400 450 880 89 160 180 815 380 390 60
273 400 450 900 108 180 200 840 390 400 63
273 400 450 945 133 225 250 930 413 425 72
273 400 450 970 159 250 280 960 425 440 79
273 400 450 1045 219 315 355 1030 458 478 105
273 400 450 1120 273 400 450 1110 500 525 127
325 450 500 845 45 125 - 805 388 395 68
325 450 500 845 57 125 140 805 388 395 69
325 450 500 860 76 140 160 825 395 405 73
325 450 500 880 89 160 180 840 405 415 76
325 450 500 900 108 180 200 865 415 425 79
325 450 500 945 133 225 250 955 438 450 89
325 450 500 970 159 250 280 985 450 465 95
325 450 500 1045 219 315 355 1055 483 503 121
325 450 500 1120 273 400 450 1130 525 550 159
325 450 500 1170 325 450 500 1340 550 575 195
426 560 630 845 57 125 140 870 443 450 92
426 560 630 860 76 140 160 890 450 460 96
426 560 630 880 89 160 180 905 460 470 100
426 560 630 900 108 180 200 930 470 480 104
426 560 630 945 133 225 250 1020 493 505 114
426 560 630 970 159 250 280 1050 505 520 123
426 560 630 1045 219 315 355 1120 538 558 152
426 560 630 1120 273 400 450 1195 580 605 193
426 560 630 1170 325 450 500 1405 605 630 236
426 560 630 1280 426 560 630 1530 660 695 293
530 710 - 860 76 140 160 930 525 535 116
530 710 - 880 89 160 180 945 535 545 122
530 710 - 900 108 180 200 970 545 555 126
530 710 - 945 133 225 250 1060 568 580 137
530 710 - 970 159 250 280 1090 580 595 146
530 710 - 1045 219 315 355 1160 613 633 178
530 710 - 1120 273 400 450 1235 655 680 224
530 710 - 1170 325 450 500 1345 680 705 259
530 710 - 1280 426 560 630 1570 735 770 331
530 710 - 1430 530 710 - 1670 810 - 402
630 800 - 880 89 160 180 990 580 590 142
630 800 - 900 108 180 200 1015 590 600 147
630 800 - 945 133 225 250 1105 613 625 159
630 800 - 970 159 250 280 1135 625 640 168
630 800 - 1045 219 315 355 1205 658 678 203
630 800 - 1120 273 400 450 1280 700 725 253
630 800 - 1170 325 450 500 1390 725 750 291
630 800 - 1280 426 560 630 1615 780 815 353
630 800 - 1430 530 710 - 1715 855 - 493
630 800 - 1520 630 800 - 2025 900 - 496
720 900 - 900 108 180 200 1065 640 650 169
720 900 - 945 133 225 250 1155 663 675 182
720 900 - 970 159 250 280 1185 675 690 193
720 900 - 1045 219 315 355 1255 708 728 231
720 900 - 1120 273 400 450 1330 750 775 287
720 900 - 1170 325 450 500 1440 775 800 325
720 900 - 1280 426 560 630 1665 830 865 406
720 900 - 1430 530 710 - 1765 905 - 505
720 900 - 1520 630 800 - 2075 950 - 548
720 900 - 1620 720 800 - 2415 1000 - 655
820 1000 1100 945 133 225 250 1285 713 725 238
820 1000 1100 970 159 250 280 1210 725 740 248
820 1000 1100 1045 219 315 355 1375 758 778 292
820 1000 1100 1120 273 400 450 1450 800 825 355
820 1000 1100 1170 325 450 500 1575 825 850 400
820 1000 1100 1280 426 560 630 1770 880 915 491
820 1000 1100 1430 530 710 - 1905 955 - 592
820 1000 1100 1520 630 800 - 2555 1000 - 632
820 1000 1100 1620 720 900 - 2585 1050 - 724
820 1000 1100 1720 820 1000 1100 2605 1100 1150 943
920 1100 1200 970 159 250 280 1340 775 790 278
920 1100 1200 1045 219 315 355 1515 808 828 322
920 1100 1200 1120 273 400 450 1600 850 875 394
920 1100 1200 1170 325 450 500 1735 875 900 443
920 1100 1200 1280 426 560 630 1910 930 965 553
920 1100 1200 1430 530 710 - 2125 1005 - 645
920 1100 1200 1520 630 800 - 2375 1050 - 675
920 1100 1200 1620 720 900 - 2715 1100 - 766
920 1100 1200 1720 820 1000 1100 2750 1150 1200 1005
920 1100 1200 1820 920 1100 1200 2785 1200 1250 1064
1020 1200 - 1045 219 315 355 1625 858 878 364
1020 1200 - 1120 273 400 450 1710 900 925 442
1020 1200 - 1170 325 450 500 1855 925 950 499
1020 1200 - 1280 426 560 630 2030 980 1015 588
1020 1200 - 1430 530 710 - 2245 1055 - 701
1020 1200 - 1520 630 800 - 2505 1100 - 728
1020 1200 - 1620 720 900 - 2850 1150 - 637
1020 1200 - 1720 820 1000 1100 2885 1200 1250 1016
1020 1200 - 1820 920 1100 1200 2935 1250 1300 1134
1020 1200 - 1920 1020 1200 - 2975 1300 - 1222

An example of the type codes in the ordered specification:

Shortened three-way offset with outer diameter of the main pipe 108 mm, with thickness of pipe wall 4 mm and a subsidiary pipe of 76 mm in diameter, with thickness of pipe wall 3 mm, with isolation of type 1 from polyurethane foam, in polyethylene casing:

  • Three-way offset shortened St108*4-76*3-1-PUF-PEM-Sh

Shortened three-way offset with outer diameter of the main pipe 108 mm, with thickness of pipe wall 4 mm and a subsidiary pipe of 76 mm in diameter, with thickness of pipe wall 3 mm, with isolation from polyurethane foam, in galvanized casing:

  • Three-way offset shortened St108*4-76*3-PUF-GalM-Sh
