T-socket

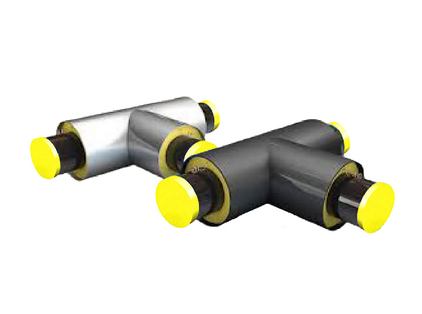

T-sockets PUF are subdividing elements of the pipe-line. T-sockets are produced in two main types – straight and reducing. In the first case the diameters of the subdivision and the main pipe are equal, in the second case – the subdivision has a smaller diameter.

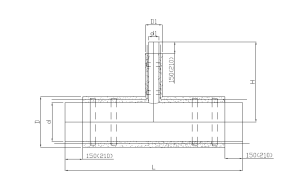

d, mm	d1, mm	PE mantle					Gal mantle		Height	Length of main pipe
		Type 1		Type 2			Gal mantle		Height	Length of main pipe
		D, mm	D1, mm	D, mm	D1, mm	m, kg	D, mm	D1, mm	H mm	L, mm
32	32	125	125	-	-	8	140	140	700	1200
38	32	125	125	-	-	9	140	140	700	1200
38	38	125	125	-	-	10	140	140	700	1200
45	32	125	125	-	-	10	140	140	700	1200
45	38	125	125	-	-	11	140	140	700	1200
45	45	125	125	-	-	11	140	140	700	1200
57	32	125	125	140	-	11	140	140	700	1200
57	38	125	125	125	-	12	140	140	700	1200
57	45	125	125	125	-	13	140	140	700	1200
57	57	125	125	140	140	14	140	140	700	1200
76	32	140	125	160	-	14	160	140	700	1300
76	38	140	125	160	-	14	160	140	700	1300
76	45	140	125	160	-	15	160	140	700	1300
76	57	140	125	160	140	16	160	140	700	1300
76	76	140	140	160	160	19	160	160	700	1300
89	32	160	125	180	-	18	160	140	700	1300
89	38	160	125	180	-	18	160	140	700	1300
89	45	160	125	180	-	19	160	140	700	1300
89	57	160	125	180	140	19	160	140	700	1300
89	76	160	140	180	160	22	160	160	700	1300
89	89	160	160	180	180	24	160	180	700	1300
108	32	180	125	200	-	20	200	140	700	1300
108	38	180	125	200	-	21	200	140	700	1300
108	45	180	125	200	-	21	200	140	700	1300
108	57	180	125	200	140	22	200	140	700	1300
108	76	180	140	200	160	24	200	160	700	1300
108	89	180	160	200	180	26	200	180	700	1300
108	108	180	180	200	200	28	200	200	700	1300

d, mm	d1, mm	PE mantle					Gal mantle		Height	Length of main pipe
		Type 1		Type 2			Gal mantle		Height	Length of main pipe
		D, mm	D1, mm	D, mm	D1, mm	m, kg	D, mm	D1, mm	H mm	L, mm
133	32	225	125	250	-	30	225	140	700	1300
133	38	225	125	250	-	30	225	140	700	1300
133	45	225	125	250	-	31	225	140	700	1300
133	57	225	125	250	140	31	225	140	700	1300
133	76	225	140	250	160	45	225	160	700	1300
133	89	225	160	250	180	35	225	180	700	1300
133	108	225	180	250	200	36	225	200	700	1300
133	133	225	225	250	250	44	225	225	700	1300
159	32	250	125	280	-	35	250	140	700	1400
159	38	250	125	280	-	35	250	140	700	1400
159	45	250	125	280	-	37	250	140	700	1400
159	57	250	125	280	140	38	250	140	700	1400
159	76	250	140	280	160	39	250	160	700	1400
159	89	250	160	280	180	40	250	180	700	1400
159	108	250	180	280	200	42	250	200	700	1400
159	133	250	225	280	250	47	250	225	700	1400
159	159	250	250	280	280	50	250	250	700	1400
219	32	315	125	355	-	59	315	140	700	1400
219	38	315	125	355	-	59	315	140	700	1400
219	45	315	125	355	-	59	315	140	700	1400
219	57	315	125	355	140	60	315	140	700	1400
219	76	315	140	355	160	62	315	160	700	1400
219	89	315	160	355	180	64	315	180	700	1400
219	108	315	180	355	200	65	315	200	700	1400
219	133	315	225	355	250	70	315	225	700	1400
219	159	315	250	355	280	72	315	250	700	1400
219	219	315	315	355	355	105	315	315	700	1400
273	32	400	125	450	-	109	400	140	900	1800
273	38	400	125	450	-	109	400	140	900	1800
273	45	400	125	450	-	110	400	140	900	1800
273	57	400	125	450	140	111	400	140	900	1800
273	76	400	140	450	160	112	400	160	900	1800
273	89	400	160	450	180	115	400	180	900	1800
273	108	400	180	450	200	117	400	200	900	1800
273	133	400	225	450	250	122	400	225	900	1800
273	159	400	250	450	280	126	400	250	900	1800
273	219	400	315	450	355	142	400	315	900	1800
273	273	400	400	450	450	160	400	400	900	1800
325	32	450	125	500	-	143	450	140	900	1800
325	38	450	125	500	-	144	450	140	900	1800
325	45	450	125	500	-	145	450	140	900	1800
325	57	450	125	500	140	146	450	140	900	1800
325	76	450	140	500	160	148	450	160	900	1800

d, mm	d1, mm	PE mantle					Gal mantle		Height	Length of main pipe
		Type 1		Type 2			Gal mantle		Height	Length of main pipe
		D, mm	D1, mm	D, mm	D1, mm	m, kg	D, mm	D1, mm	H mm	L, mm
325	89	450	160	500	180	150	450	180	900	1800
325	108	450	180	500	200	152	450	200	900	1800
325	133	450	225	500	250	157	450	225	900	1800
325	159	450	250	500	280	160	450	250	900	1800
325	219	450	315	500	355	176	450	315	900	1800
325	273	450	400	500	450	192	450	400	900	1800
325	325	450	450	500	500	221	450	450	900	1800
426	32	560	125	630	-	205	560	140	1000	1900
426	38	560	125	630	-	206	560	140	1000	1900
426	45	560	125	630	-	207	560	140	1000	1900
426	57	560	125	630	140	208	560	140	1000	1900
426	76	560	140	630	160	210	560	160	1000	1900
426	89	560	160	630	180	223	560	180	1000	1900
426	108	560	180	630	200	215	560	200	1000	1900
426	133	560	225	630	250	220	560	225	1000	1900
426	159	560	250	630	280	224	560	250	1000	1900
426	219	560	315	630	355	241	560	315	1000	1900
426	273	560	400	630	450	257	560	400	1000	1900
426	325	560	450	630	500	275	560	450	1000	1900
426	426	560	560	630	630	320	560	560	1000	1900
530	32	710	125	-	-	263	675	140	1000	2000
530	38	710	125	-	-	264	675	140	1000	2000
530	45	710	125	-	-	265	675	140	1000	2000
530	57	710	125	-	140	266	675	140	1000	2000
530	76	710	140	-	160	268	675	160	1000	2000
530	89	710	160	-	180	270	675	180	1000	2000
530	108	710	180	-	200	272	675	200	1000	2000
530	133	710	225	-	250	278	675	225	1000	2000
530	159	710	250	-	280	281	675	250	1000	2000
530	219	710	315	-	355	298	675	315	1000	2000
530	273	710	400	-	450	314	675	400	1000	2000
530	325	710	450	-	500	331	675	450	1000	2000
530	426	710	560	-	630	358	675	560	1000	2000
530	530	710	710	-	-	382	675	675	1000	2000
630	32	800	125	-	-	312	775	140	1000	2000
630	38	800	125	-	-	313	775	140	1000	2000
630	45	800	125	-	-	314	775	140	1000	2000
630	57	800	125	-	140	315	775	140	1000	2000
630	76	800	140	-	160	317	775	160	1000	2000
630	89	800	160	-	180	319	775	180	1000	2000
630	108	800	180	-	200	322	775	200	1000	2000
630	133	800	225	-	250	327	775	225	1000	2000
630	159	800	250	-	280	330	775	250	1000	2000

d, mm	d1, mm	PE mantle					Gal mantle		Height	Length of main pipe
		Type 1		Type 2			Gal mantle		Height	Length of main pipe
		D, mm	D1, mm	D, mm	D1, mm	m, kg	D, mm	D1, mm	H mm	L, mm
630	219	800	315	-	355	347	775	315	1000	2000
630	273	800	400	-	450	362	775	400	1000	2000
630	325	800	450	-	500	378	775	450	1000	2000
630	426	800	560	-	630	403	775	560	1000	2000
630	530	800	710	-	-	427	775	675	1000	2000
630	630	800	800	-	-	471	775	775	1000	2000
720	32	900	125	-	-	363	875	140	1100	2000
720	38	900	125	-	-	364	875	140	1100	2000
720	45	900	125	-	-	365	875	140	1100	2000
720	57	900	125	-	140	366	875	140	1100	2000
720	76	900	140	-	160	368	875	160	1100	2000
720	89	900	160	-	180	370	875	180	1100	2000
720	108	900	180	-	200	373	875	200	1100	2000
720	133	900	225	-	250	379	875	225	1100	2000
720	159	900	250	-	280	382	875	250	1100	2000
720	219	900	315	-	355	400	875	315	1100	2000
720	273	900	400	-	450	417	875	400	1100	2000
720	325	900	450	-	500	435	875	450	1100	2000
720	426	900	560	-	630	460	875	560	1100	2000
720	530	900	710	-	-	485	875	675	1100	2000
720	630	900	800	-	-	517	875	775	1100	2000
720	720	900	900	-	-	561	875	875	1100	2000
820	32	1000	125	1100	-	493	975	140	1200	2000
820	38	1000	125	1100	-	493	975	140	1200	2000
820	45	1000	125	1100	-	494	975	140	1200	2000
820	57	1000	125	1100	140	495	975	140	1200	2000
820	76	1000	140	1100	160	498	975	160	1200	2000
820	89	1000	160	1100	180	501	975	180	1200	2000
820	108	1000	180	1100	200	504	975	200	1200	2000
820	133	1000	225	1100	250	510	975	225	1200	2000
820	159	1000	250	1100	280	514	975	250	1200	2000
820	219	1000	315	1100	355	534	975	315	1200	2000
820	273	1000	400	1100	450	552	975	400	1200	2000
820	325	1000	450	1100	500	569	975	450	1200	2000
820	426	1000	560	1100	630	596	975	560	1200	2000
820	530	1000	710	1100	-	622	975	675	1200	2000
820	630	1000	800	1100	-	644	975	775	1200	2000
820	720	1000	900	1100	-	654	975	875	1200	2000
820	820	1000	1000	1100	1100	839	975	975	1200	2000
920	32	1100	125	1200	-	542	975	140	1200	2100
920	38	1100	125	1200	-	542	1075	140	1200	2100
920	45	1100	125	1200	-	544	1075	140	1200	2100
920	57	1100	125	1200	140	545	1075	140	1200	2100

d, mm	d1, mm	PE mantle					Gal mantle		Height	Length of main pipe
		Type 1		Type 2			Gal mantle		Height	Length of main pipe
		D, mm	D1, mm	D, mm	D1, mm	m, kg	D, mm	D1, mm	H mm	L, mm
920	76	1100	140	1200	160	548	1075	160	1200	2100
920	89	1100	160	1200	180	550	1075	180	1200	2100
920	108	1100	180	1200	200	553	1075	200	1200	2100
920	133	1100	225	1200	250	559	1075	225	1200	2100
920	159	1100	250	1200	280	563	1075	250	1200	2100
920	219	1100	315	1200	355	582	1075	315	1200	2100
920	273	1100	400	1200	450	600	1075	400	1200	2100
920	325	1100	450	1200	500	618	1075	450	1200	2100
920	426	1100	560	1200	630	644	1075	560	1200	2100
920	530	1100	710	1200	-	670	1075	675	1200	2100
920	630	1100	800	1200	-	690	1075	775	1200	2100
920	720	1100	900	1200	-	691	1075	875	1200	2100
920	820	1100	1000	1200	1100	767	1075	975	1200	2100
920	920	1100	1100	1200	1200	880	1075	1075	1200	2100
1020	32	1200	125	-	-	957	1175	140	1300	2100
1020	38	1200	125	-	-	957	1175	140	1300	2100
1020	45	1200	125	-	-	958	1175	140	1300	2100
1020	57	1200	125	-	140	959	1175	140	1300	2100
1020	76	1200	140	-	160	962	1175	160	1300	2100
1020	89	1200	160	-	180	966	1175	180	1300	2100
1020	108	1200	180	-	200	968	1175	200	1300	2100
1020	133	1200	225	-	250	974	1175	225	1300	2100
1020	159	1200	250	-	280	978	1175	250	1300	2100
1020	219	1200	315	-	355	1000	1175	315	1300	2100
1020	273	1200	400	-	450	990	1175	400	1300	2100
1020	325	1200	450	-	500	1039	1175	450	1300	2100
1020	426	1200	560	-	630	1068	1175	560	1300	2100
1020	530	1200	710	-	-	1094	1175	675	1300	2100
1020	630	1200	800	-	-	1115	1175	775	1300	2100
1020	720	1200	900	-	-	1104	1175	875	1300	2100
1020	820	1200	1000	-	1100	1168	1175	975	1300	2100
1020	920	1200	1100	-	1200	1216	1175	1075	1300	2100
1020	1020	1200	1200	-	-	1602	1175	1175	1300	2100

An example of the type codes in the ordered specification:

T-socket with outer diameter of the main pipe 426 mm, with thickness of pipe wall 7 mm and diameter of the subsidiary pipe 76 mm, thickness of pipe wall 3,5 mm, with isolation of type 1 from polyurethane foam, , in polyethylene casing:

T-socket St426*7-76*3,5-1-PUF-PEM

T-socket with diameter 426 mm, with thickness of pipe wall 7 mm, and diameter of the subsidiary pipe 76 mm, thickness of pipe wall 3,5 mm, with isolation from polyurethane foam, , in galvanized casing:

T-socket St426*7-76*3,5-45°-PUF-GalM
